Page 10 of 54

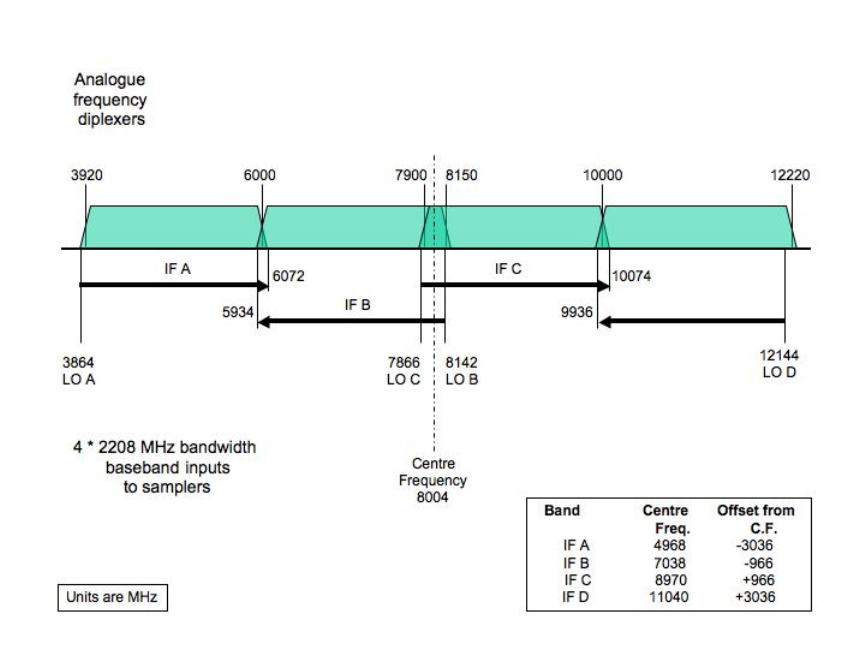

Figure 4 MOPS bands and IF's

In Zoom mode, the zoom windows are arranged as depicted in the following

graph. Use mops_vis to determine the window numbers to use in your

schedule, as well as to optimize the center frequency.

Alternatively, you can also use the new on the fly schedule maker version 6.0, it

features a graphical zoom window editor similar to mops_vis.
